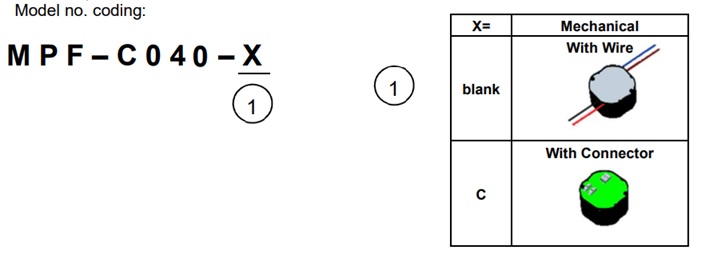

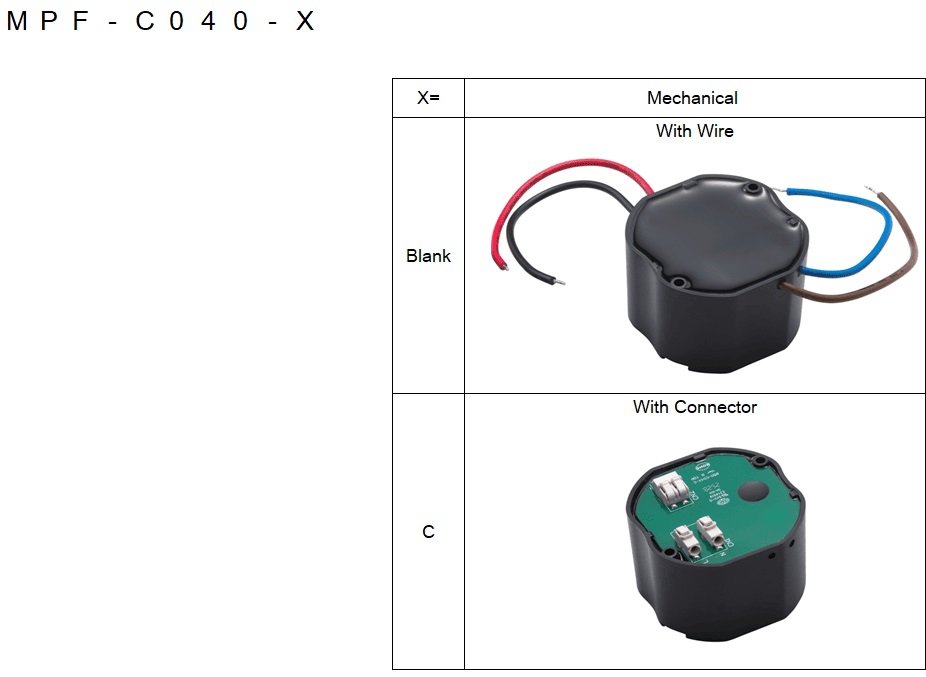

MPF-C040 SERIES




No Fan Green power Class 2

FEATURES

  • Potting power supply for installation into flush box in the wall.
  • Maximum wattage 40W.
  • Potting in Heat-Resistant PC enclosure.
  • Dust resistant and Waterproof IP65 rating.
  • Wide operating temperature -20~+80°C
  • Class II with auto recovery mode for short-circuited protection.
  • EN IEC 62368-1:2020+A11:2020 approved, designed to meet EN 60335-1 for Household Appliances.
  • Meet EMI CISPR 32 / FCC Part 15 class B.

TAGS

IP65 Design to meet EN62368 EN60601 EN60335 Meet IEC62368 LVD62368 Class II Application

Models & Ratings

MPF-C043 40W +12V 3.33A SPEC
MPF-C045 40W +24V 1.67A SPEC
